Signal Generator Module with Adjustable PWM Frequency

Description:

Create precise signals with this adjustable signal generator module, featuring a PWM pulse frequency range from 1Hz to 150kHz. Ideal for electronics projects, this module is perfect for hobbyists and professionals alike. A valuable tool for testing and experimentation.

Features:

• Adjustable signal generator module with PWM pulse frequency from 1Hz to 150kHz.
• Ideal for electronics projects and testing applications for hobbyists and professionals.

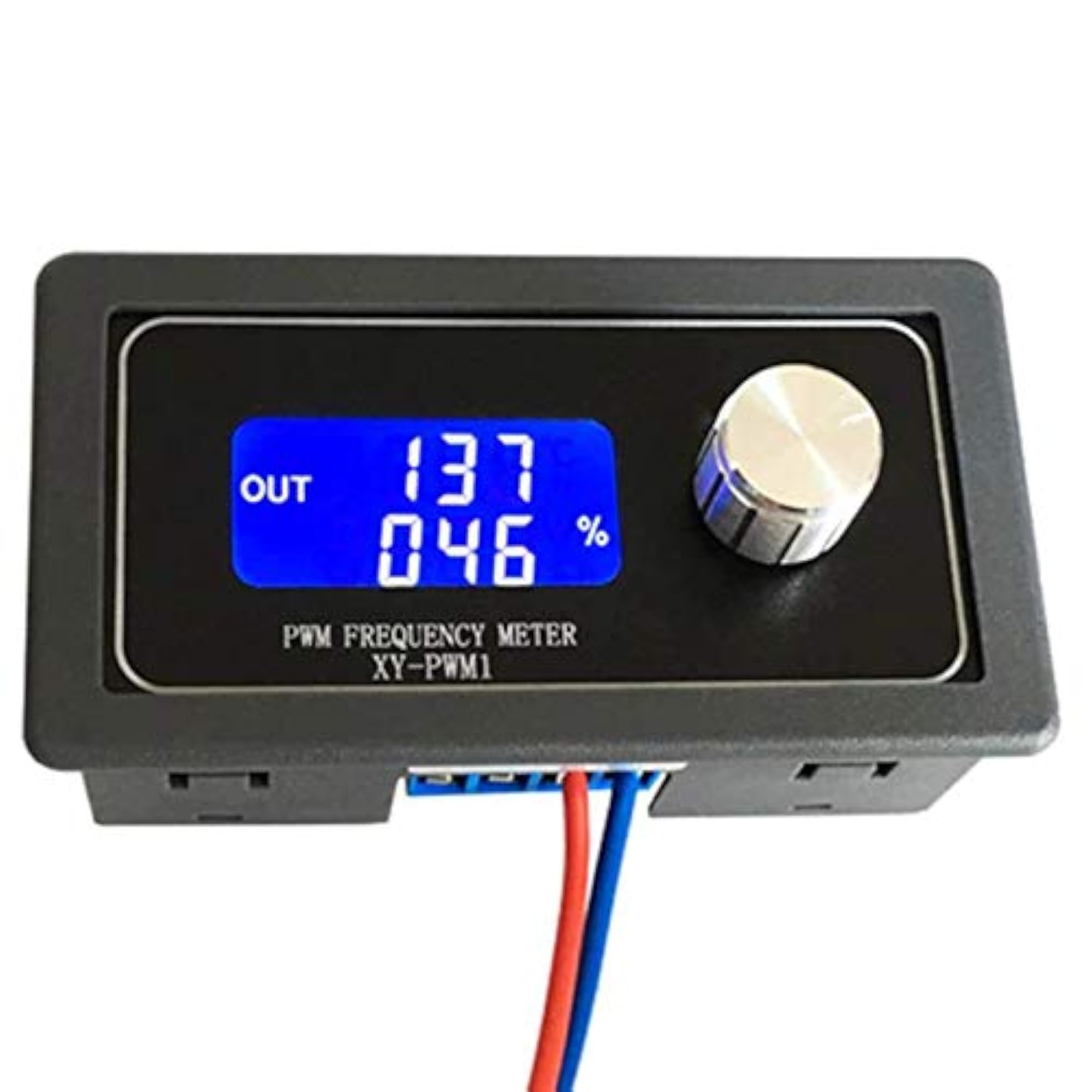

• LCD display with adjusting knob for easy frequency adjustments.
• Compact design makes it easy to integrate into various setups and projects.
• A practical tool for electronics enthusiasts looking to experiment and create signals.

Additional Info:

• color : Black
• PWM output, you can set the frequency, duty cycle; Normal mode: Frequency range:1Hz~150KHz Duty:000~100%, duty-free step 1%; Fine mode: Frequency range:1Hz~15khz Duty:00.0~100%, duty-free step 0.1%;
• Frequency is divided into four ranges, automatic switching: 1. XXX (no decimal point): the smallest unit is 1Hz, the value range of 1Hz ~ 999Hz; 2. X.XX (decimal point in the hundred) the smallest unit is 0.01Khz, the range of 1.00Khz ~ 9.99Khz; 3. XX.X (decimal point in ten): the smallest unit is 0.1Khz; value range of 10.0KHz ~ 99.9KHz 4. X.X.X (decimal point in ten and hundred): the smallest unit is 1Khz; value range 1KHz ~ 150KHz
• frequency display: 100 indicates PWM output 100Hz pulse; 1.01 indicates PWM output 1.01K pulse; 54.1 indicates that the PWM output has a pulse of 54.1 kHz; 1.2.4 indicates that the PWM output is 124 kHz pulse; Duty cycle range: 0 ~ 100%; All set parameters, power-down automatically saved.
• Second, the parameter settings This product through the Rotary Encoder to adjust the frequency and duty cycle, can be determined according to the rotation speed to achieve rapid adjustment, the default adjustment duty cycle, short press adjust frequency, long press 2 seconds lock, long press 5 seconds switch mode (normal mode/fine mode), simple operation, set the parameters of automatic saving, no loss of power.
