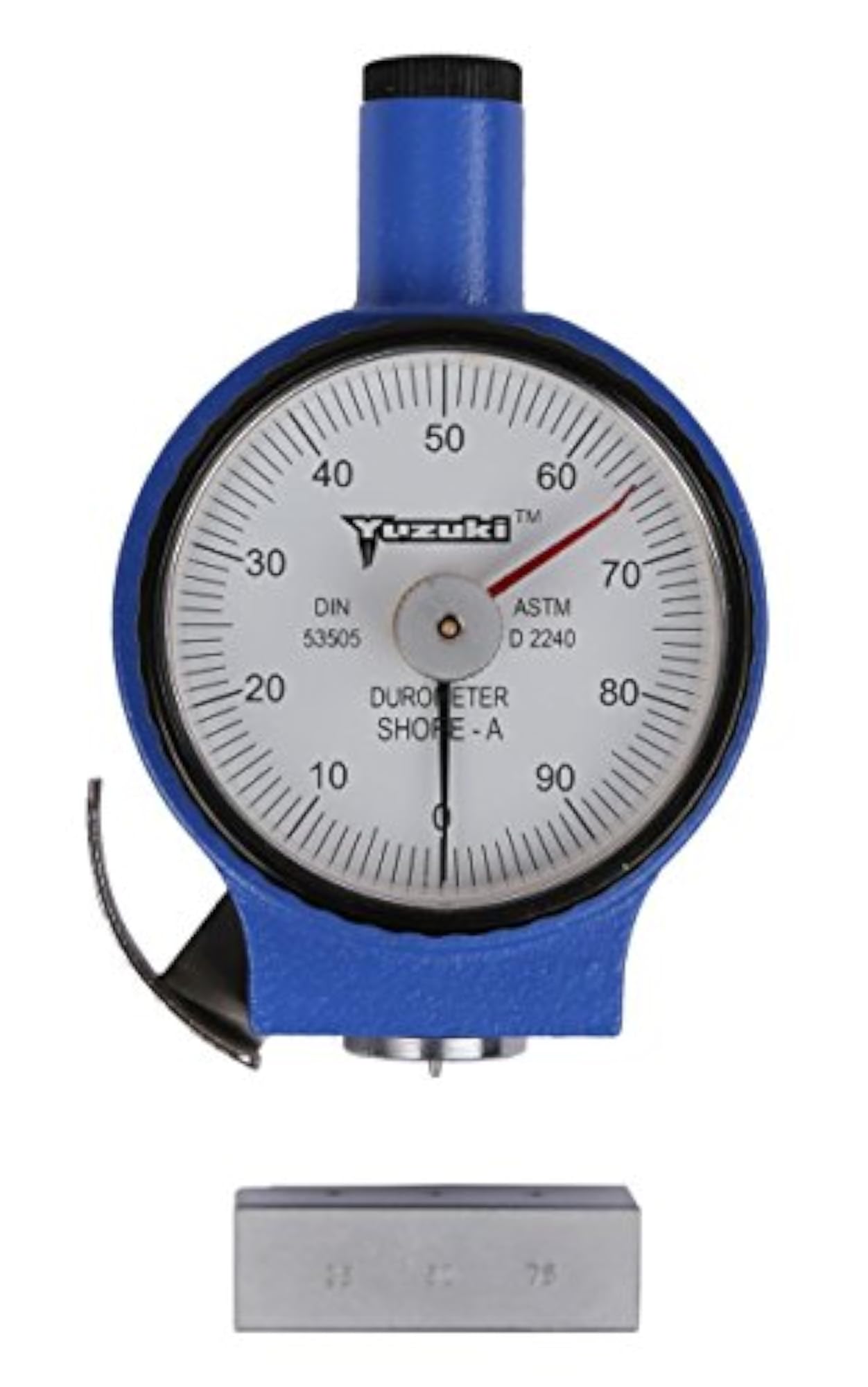

Shore A Rubber Hardness Tester with Test Piece, 0-100HA

Description:

Ensure quality in your materials with this Shore A Rubber Hardness Tester, featuring a test piece for accurate measurements from 0 to 100HA. Perfect for industrial applications, this durometer is essential for assessing the hardness of soft materials.

Features:

• Includes test piece for precise hardness measurements from 0 to 100HA.
• Ideal for testing rubber and soft materials in industrial settings.
• Robust design ensures durability and reliability in various environments.
• User-friendly interface allows for quick and easy operation.
• A vital tool for quality assurance in manufacturing processes.

Additional Info:

• size : 7 cm x 5 cm x 5 cm, color : Silver, material : stainless_steel
• Measuring Principle: Measures hardness based on the resistance force of a pin?s penetration into the test material under a known spring load (max. 2.54mm / 0.1in.).
• Measuring Range: 0-100 units, covering a wide range of hardness levels.
• Standards Compliance: Conforms to DIN 53505 and ASTM D2240 for accurate and reliable results.
• Accuracy: - Export Model: ?1 Shore Hardness Unit - Single Needle & Pin Pointer Model: ?1.5 Shore Hardness Unit
• Recommended Scale: Per ASTM D2240, readings below 10 and above 90 are unreliable; select the appropriate scale for accurate results.
• Base Contact Area: 18mm diameter, ensuring stable and precise measurements.
• Indentors: Made of High-Speed Steel (HSS) with Linear Bearings for smooth, precise operation.
• Material & Build: Crafted from Stainless Steel with a hard chrome-plated, ground contact surface for durability.
• Max Work Height/Width: 80mm x 100mm, accommodating various testing applications.
