NanoVNA V2 Vector Network Analyzer, 50KHz - 3GHz

Rs. 49,899.00
Rs. 70,799.00
Rs. 49,899.00
(-30%)

ⓘ Price & availability are subject to final order validation. If an adjustment is required due to size, weight or shipping requirements, we'll contact you before processing your order.

10 customers are viewing this product
Subtotal: Rs. 49,899.00
Overseas

Ships from our international warehouse ! This item ships from our international warehouse to bring you a wider range of products. Delivery may take a little longer, but all duties and taxes are included — there are no additional charges on delivery.


Estimated to be delivered between 18/10/2026 - 29/10/2026

📦 Tracked shipping
🔒 Secure checkout
✔ Buyer protection
✔ No import duties or extra fees

Free Shipping

Free standard shipping on prepaid orders

img_17279967

NanoVNA V2 Vector Network Analyzer, 50KHz - 3GHz

Rs. 70,799.00 Rs. 49,899.00
img_17279967

NanoVNA V2 Vector Network Analyzer, 50KHz - 3GHz

Rs. 70,799.00 Rs. 49,899.00
Description

Description:

The NanoVNA V2 is a powerful vector network analyzer with a touchscreen interface, capable of measuring S parameters and more across a frequency range of 50KHz to 3GHz. Ideal for RF engineers and hobbyists, it is an essential tool for antenna testing and RF development.

Features:

  • NanoVNA V2 vector network analyzer with touchscreen interface.
  • Frequency range of 50KHz to 3GHz for versatile RF applications.
  • Measures S parameters, voltage standing wave ratio, and more.
  • Essential for RF engineers and hobbyists in antenna testing.
  • A valuable tool for electronics enthusiasts and developers.

Additional Info:

  • size : 2.8inch
  • ?Metal Shell?The Vector Network Analyzer made of metal shell;The metal shell can fully protect the internal precision circuit, and fully consider the protection of the external interface.The metal shield is designed to reduce the external interference and improve the measurement accuracy.High stability, high sensitivity, high accuracy, greatly improved performance.
  • ?Wide Range Frequency?The 3G NanoVNA V2 has more superior frequency 50KHz -3GHz than other NanoVNA,the 50K-1500MHz frequency range provides better than 70dB dynamic, and the extended 1500M-3000MHz band provides better than 60dB of dynamics;and S11 noise floor (calibrated): -50dB (up to 1.5GHz), -40dB (up to 3GHz);Port SWR<1.03.
  • ?Widely Used?Measuring S Parameters, Voltage Standing Wave Ratio, Smith Chart ,Phase, Delay;The default firmware main function is used for antenna performance measurement. The TX/RX method can measure the complete S11 and S21 parameters.Support time domain analysis function (TDR). Can be controlled by PC via VNA-QT software,supported for Linux, Windows (7+), Mac OS planned.
  • ?Large Battery and Secure Power Supply?: The S-A-A-2 NanoVNA V2 is battery powered or USB powered; Built in 1950mAh battery,it has a longer use time,could work for 6 hours continuously, if need extra working time, it can be connected to power bank or power source.

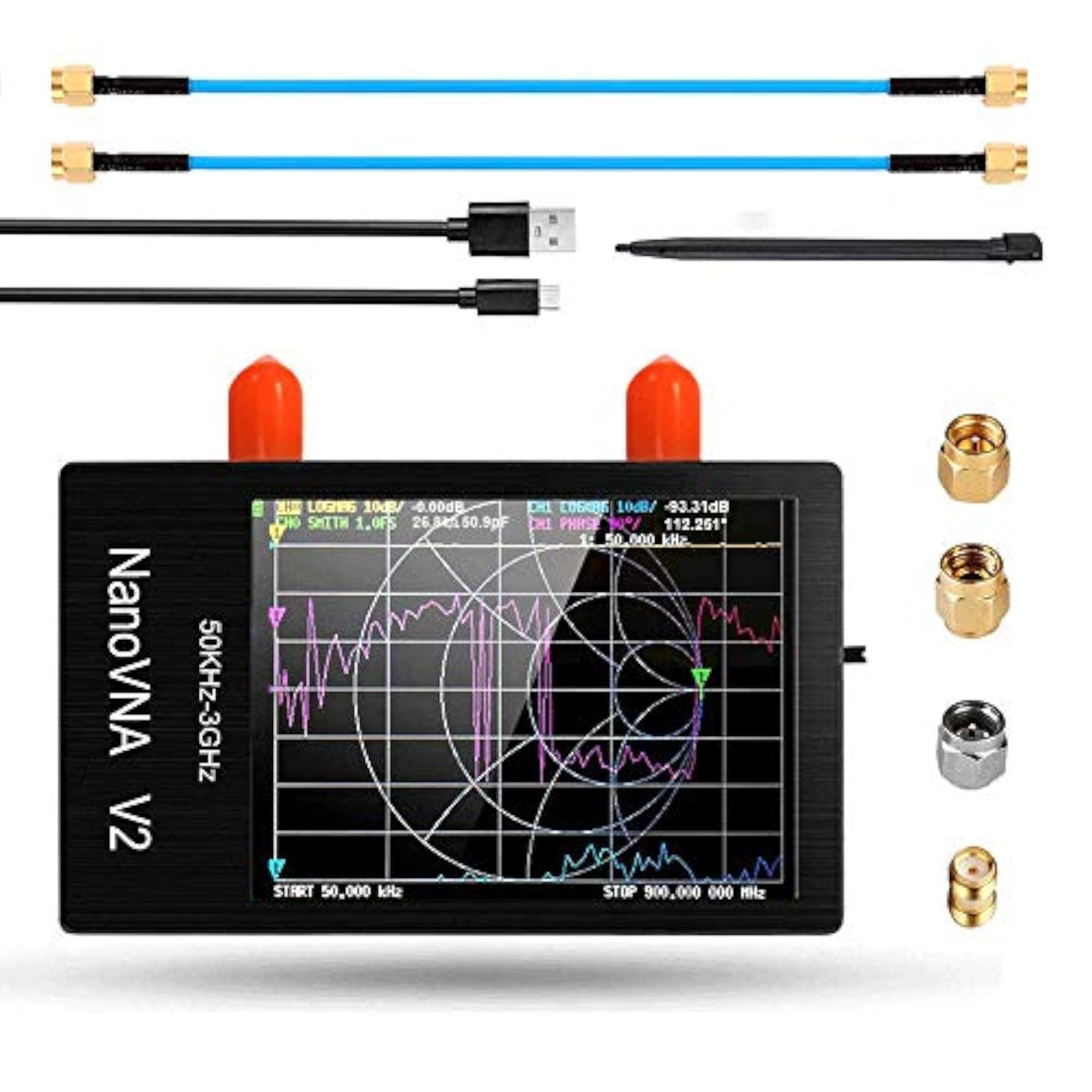

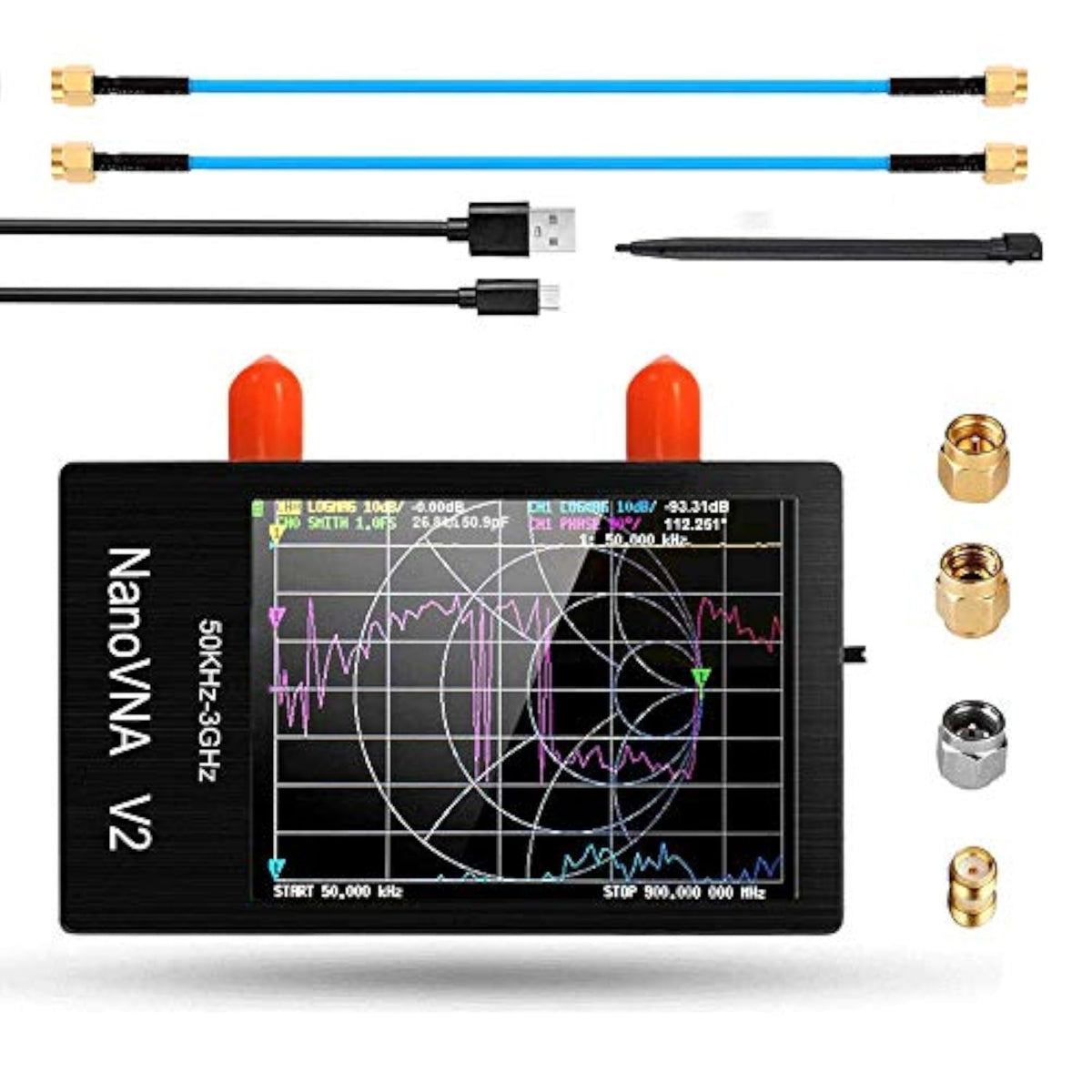

  • ?Package List?S-A-A-2 NanoVNA V2 host (with 1950mAh battery) x1; USB data cable x 1;30mm SMA male to male SS405 RF cable x2;SMA male calibration kit - OPEN x1;SMA male calibration kit - SHORT x1;SMA male calibration kit - LOAD x1;SMA female to female connector x1;Touchscreen Pen x1
