MPR121 Breakout V12 Capacitive Touch Sensor Module

Description:

The MPR121 breakout V12 capacitive touch sensor module is designed for easy integration into electronic projects, providing reliable touch sensing capabilities. Ideal for DIY electronics, it allows users to create interactive applications with ease. A valuable component for hobbyists and developers looking to enhance their projects.

Features:

• Capacitive touch sensor module enables reliable touch sensing for projects.
• Easy integration into various electronic applications for DIY enthusiasts.
• Ideal for creating interactive applications and projects with touch functionality.
• Compact design allows for versatile use in different setups.
• A must-have component for hobbyists and developers in electronics.

Additional Info:

• style : modern

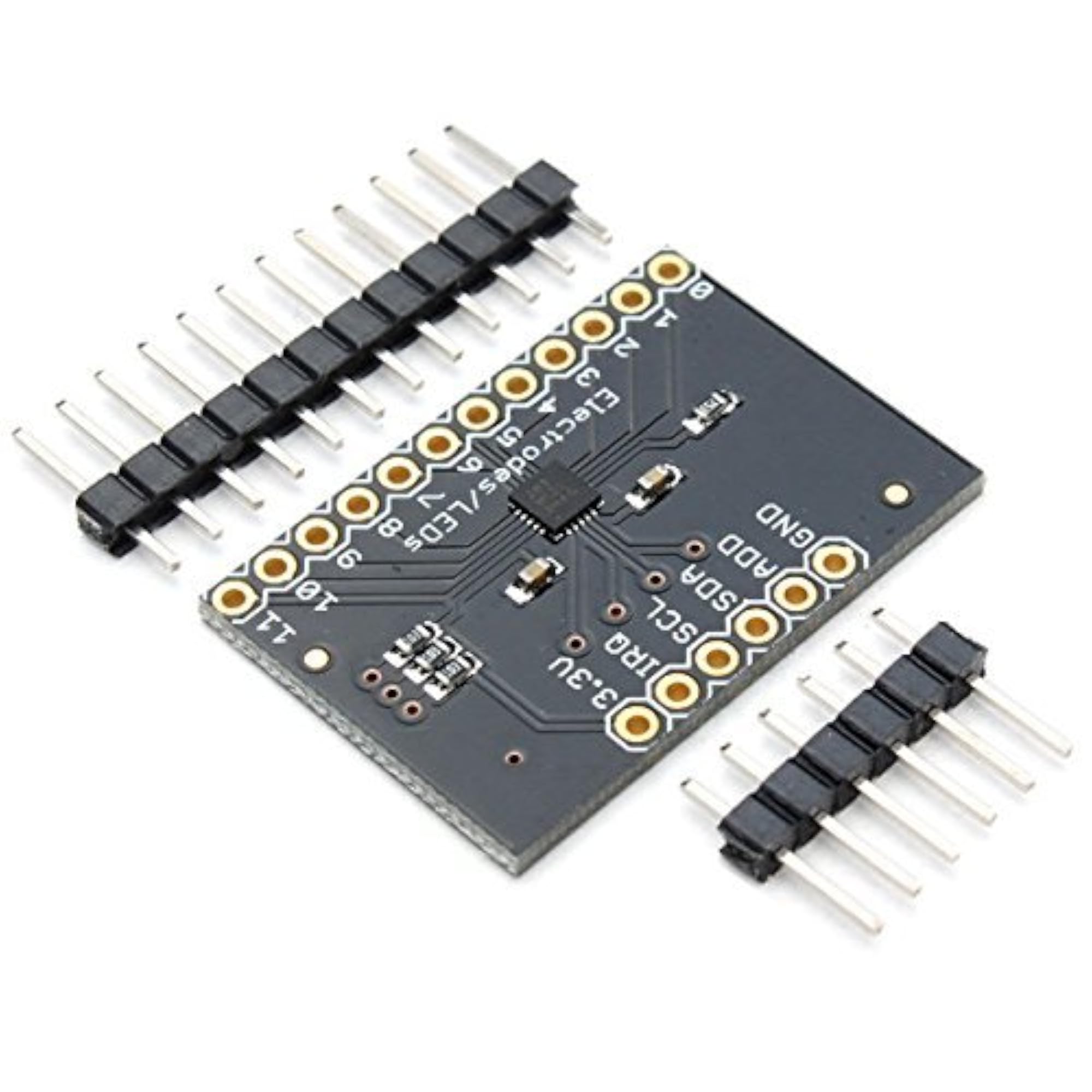

• This is a breakout board for Freescale's MPR121QR2 The MPR121 is a capacitive touch sensor controller driven by an I2C interface The chip can control up to twelve individual electrodes, as well as a simulated thirteenth electrode The MPR121 also features eight LED driving... pins. When these pins are not configured as electrodes, they may be used to drive LEDs.
• There a four jumpers on the bottom of the board, all of which are set (closed) by default. An address jumper ties the ADD pin to ground, meaning the default I2C address of the chip will be 0x5A. If you need to change the address of the chip (by shorting ADD to a different pin), make sure you open the jumper first. Jumpers also connect SDA, SCL and the interrupt pin to 10k pull-up resistors. If you do not require the pull-up resistors you can open the jumpers by cutting the trace connecting them.
• There is no regulation on the board, so the voltage supplied should be between 2.5 and 3.6VDC. The VREG pin is connected through a 0.1uF capacitor to ground, which means, unless you modify the board, you can not operate the MPR121 in low-supply voltage mode (1.71-2.75VDC).
• This module uses a 5V power supply. The PS2 set the two-channel analog output module and one channel of the digital output, the output value respectively corresponding to (X, Y) axis offset, its type is analog; button indicates whether the user pressed in the Z-axis, its type digital switching amount. Module integrated power indicators which show the working status. Applicable on the Arduino sensor expansion board plug.
