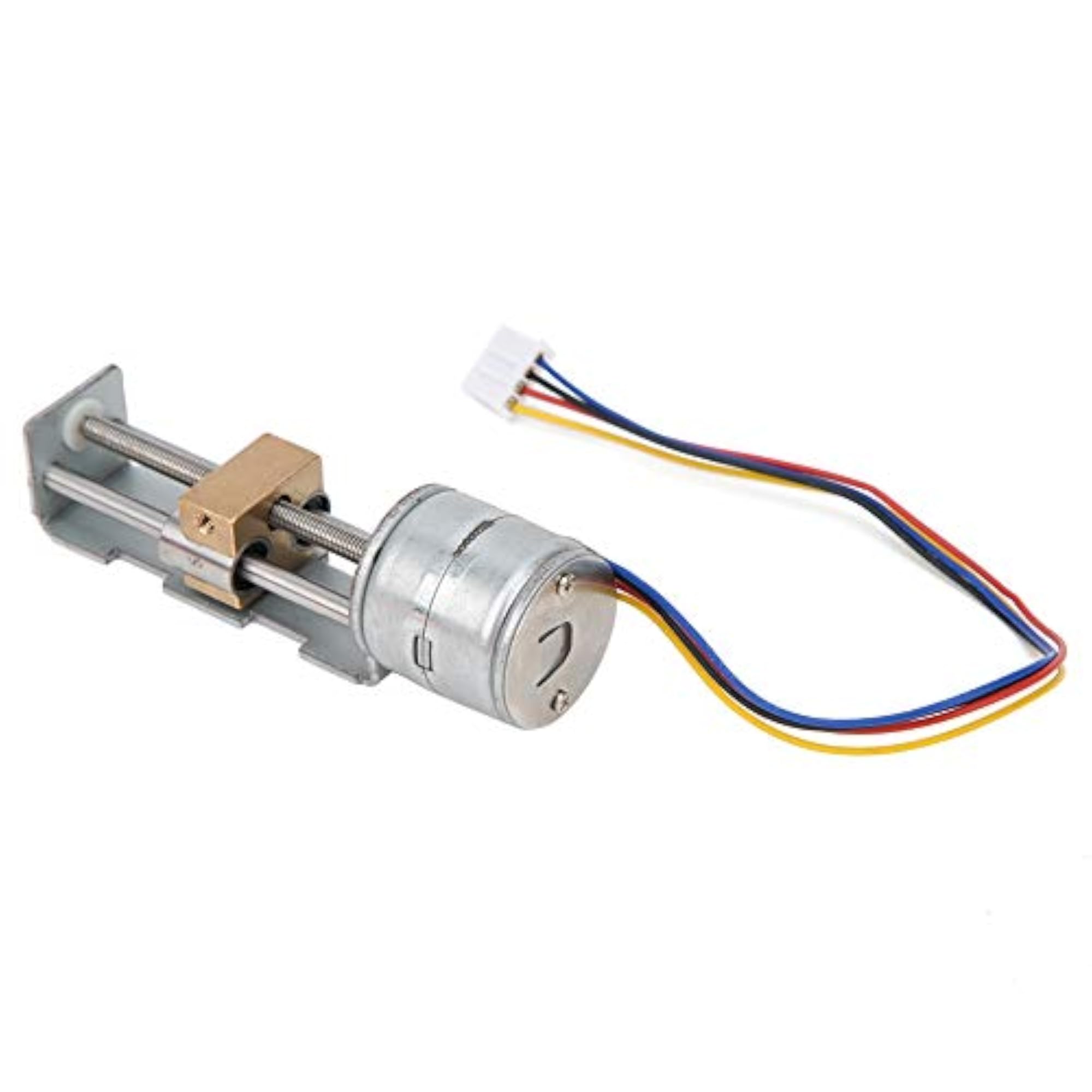

Mini Linear Stage Actuator for Measuring Equipment

Rs. 16,849.00
Rs. 23,849.00
Rs. 16,849.00
(-29%)

ⓘ Price & availability are subject to final order validation. If an adjustment is required due to size, weight or shipping requirements, we'll contact you before processing your order.

10 customers are viewing this product
Subtotal: Rs. 16,849.00
Overseas

Ships from our international warehouse ! This item ships from our international warehouse to bring you a wider range of products. Delivery may take a little longer, but all duties and taxes are included — there are no additional charges on delivery.


Estimated to be delivered between 22/10/2026 - 02/11/2026

📦 Tracked shipping
🔒 Secure checkout
✔ Buyer protection
✔ No import duties or extra fees

Free Shipping

Free standard shipping on prepaid orders

img_17269588

Mini Linear Stage Actuator for Measuring Equipment

Rs. 23,849.00 Rs. 16,849.00
img_17269588

Mini Linear Stage Actuator for Measuring Equipment

Rs. 23,849.00 Rs. 16,849.00
Description

Description:

This mini linear stage actuator is designed for precision movement in measuring equipment, featuring a small slide rail and a screw stepper motor. Ideal for various applications in laboratories and engineering projects.

Features:

  • Mini linear stage actuator for precision movement in measuring equipment.
  • Includes small slide rail and screw stepper motor for accurate positioning.
  • Perfect for laboratory and engineering applications requiring precision.
  • Compact design allows for versatile installation options.
  • A valuable tool for engineers and researchers alike.

Additional Info:

  • material : Metal
  • ?Mini Linear Stage Actuator? Motor Linear is widely used and can fully meet your needs. The Screw Stepper can be used for DIY small sliders, projects, measuring equipment, printers.
  • ?Stepper motor with screw?Motor stepper adopts all-metal structure, fine workmanship, , high work efficiency, sturdiness and durability, and long service life.
  • ?2-phase 4-wire Stepper?Small Slide Rail is a miniature 2-phase 4-wire stepper motor with a planetary gear reducer, which drives an accurate diagonal line to move the metal slider up and down, bringing you a experience.
  • ?5-9V / 200-600mA?The bracket of Mini Linear Stage Actuator is basically made of metal structure. The driving voltage of the motor is 5-9V / 200-600mA. The higher the voltage, the greater the force of the product and the greater the heat generation.
  • ?Stepper motor Size?Stepper motor with screw size: Screw Length: Approx. 45mm / 1.8in Slider Stroke: Approx. 34mm / 1.3in Motor Diameter: Approx. 20mm / 0.8in Screw Diameter: Approx. 3mm / 0.1in Screw Pitch: Approx. 0.5mm / 0.02in
