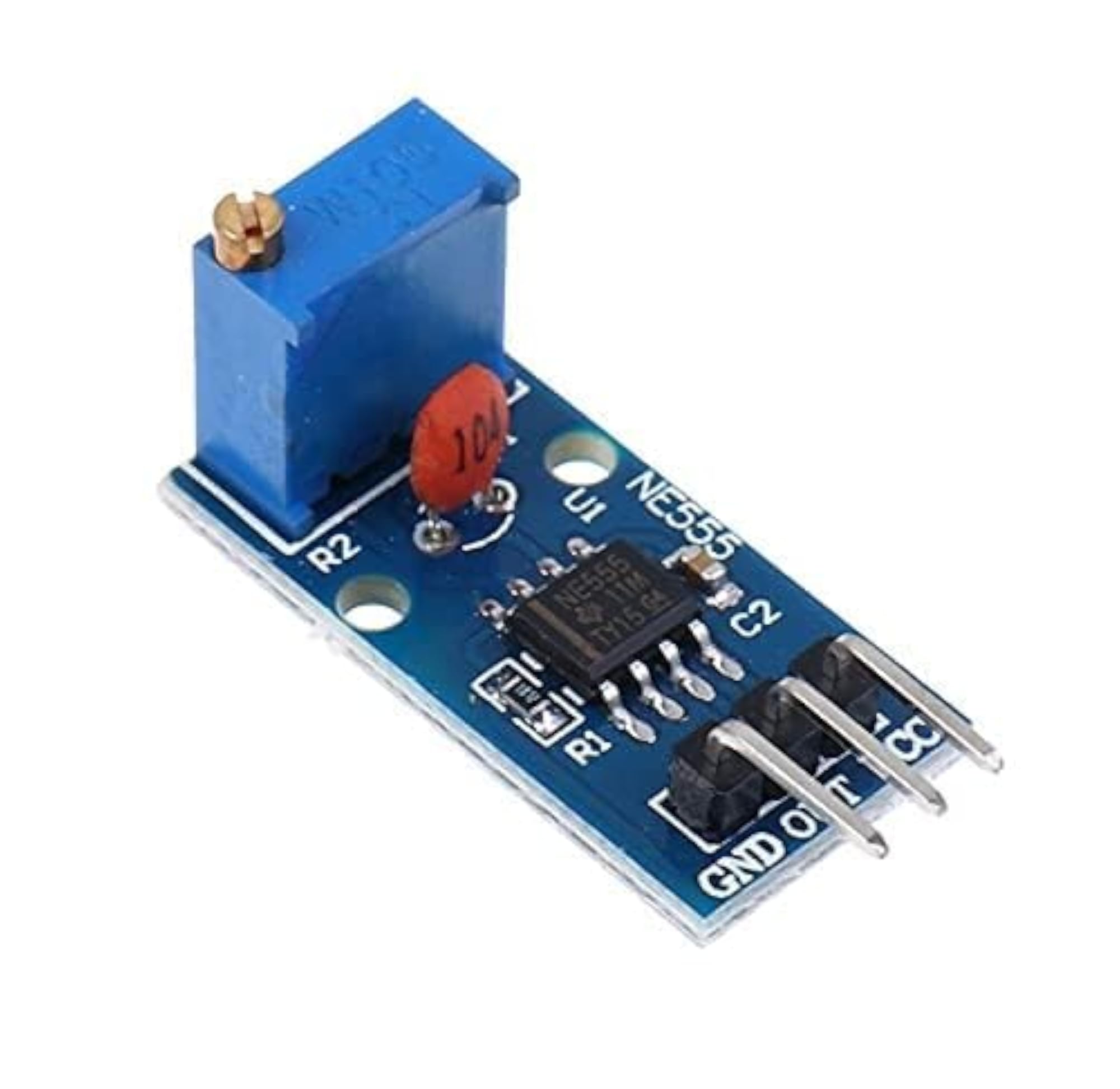

Khyrud NE555 Frequency Adjustable Pulse Generator Module

Description:

The Khyrud NE555 pulse generator module allows for frequency adjustments, making it ideal for embedded systems and robotics projects. Its square and rectangular wave signal outputs are perfect for various electronics applications, enhancing creativity in design.

Features:

• Adjustable frequency settings enable customization for different project needs.
• Outputs square and rectangular wave signals for versatile electronics applications.
• Ideal for robotics and embedded systems projects, enhancing creativity and functionality.
• Compact design makes it easy to integrate into various electronic setups.
• A valuable tool for hobbyists and professionals in electronics and robotics.

Additional Info:

• ?? NE555 TIMING CIRCUITRY: Driven by the NE555 timer IC to deliver stable square wave and pulse signal generation for digital logic circuits.
• ? MULTITURN POTENTIOMETER: Features an onboard blue multiturn trimmer for smooth, fine-tuned adjustment of pulse frequency and duty cycle.
• SIMPLE 3-PIN HEADER: Comes pre-soldered with a 3-pin header (VCC, OUT, GND) for quick connection to breadboards and development modules.
• COMPACT FORM FACTOR: Ultra-small PCB layout designed to fit effortlessly into compact robotics, custom enclosures, and prototyping setups.
• WIDE DC VOLTAGE INPUT: Operates efficiently across 5V to 12V DC input ranges, outputting TTL-compatible pulse logic signals.
• Dual Potentiometer Control ? Equipped with two onboard knobs to fine-tune frequency and duty cycle independently for precise waveform output.
• ? MULTI-PURPOSE CLOCK SOURCE: Ideal for driving stepper motor controllers, PWM signal testing, MCU clocking, and STEM electronic models PWM control, LED dimming, servo motor testing, tone generation, frequency testing, and circuit experiments.
