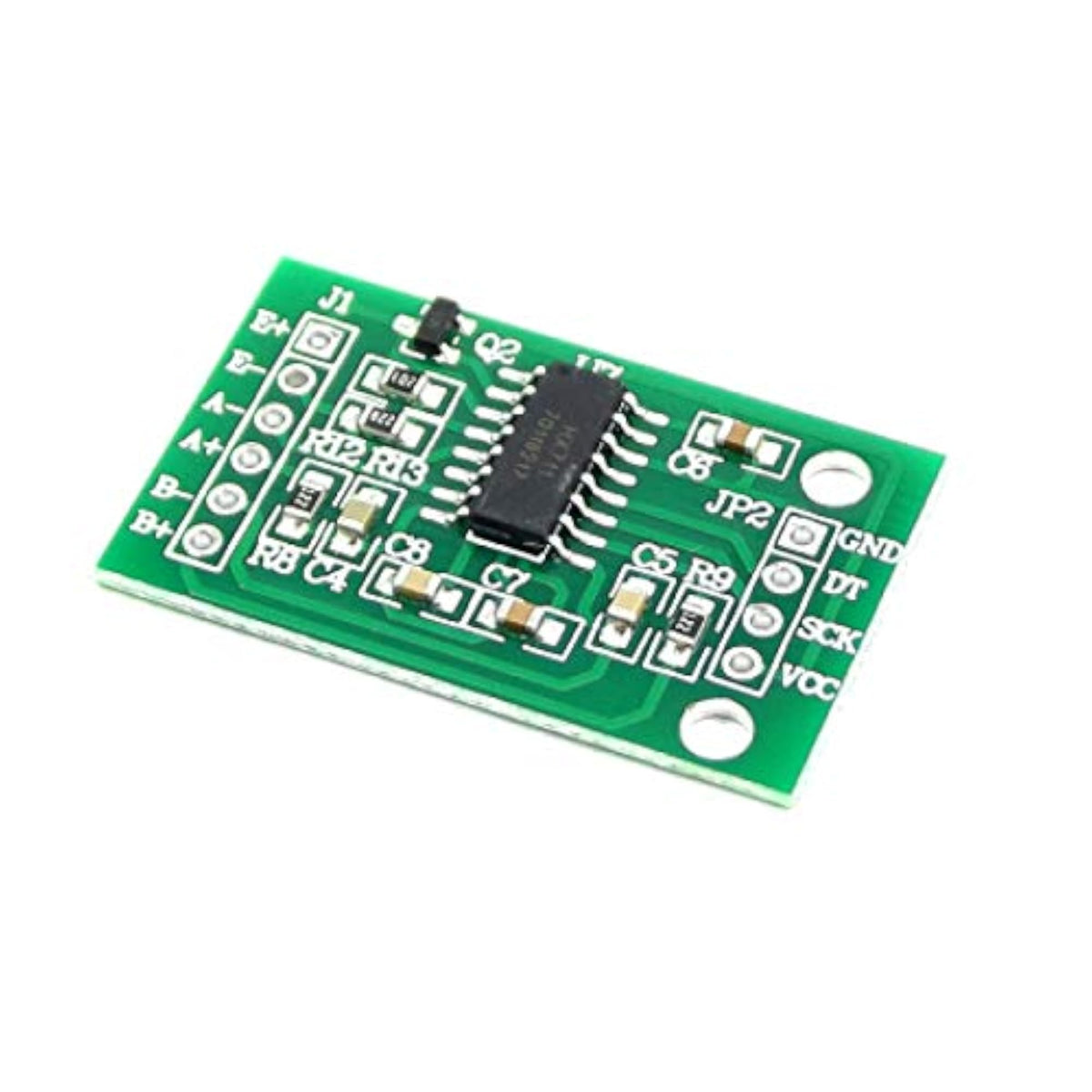

HX711 Weighing Sensor Module for DIY Projects

Description:

Accurately measure weight with the HX711 weighing sensor module, designed for DIY electronics projects. This module is perfect for scales and weight measurement applications, providing reliable readings for various uses. A great component for hobbyists and makers looking to create their own weighing systems.

Features:

• Designed for accurate weight measurement in DIY electronics projects.
• Compatible with various scales and weight measurement applications.
• Provides reliable readings for precise weight calculations.
• Ideal for hobbyists and makers creating their own weighing systems.
• A valuable addition to any DIY electronics toolkit.

Additional Info:

• style : Digital
• This module uses 24 high precision A/D converter chip hx711. It is a specially designed for the high precision electronic scale design.
• with two analog input channel. the internal integration of 128 times the programmable gain amplifier. The input circuit can be configured to provide a bridge type pressure bridge (such as pressure. weighing sensor mode). is of high precision. low cost is an ideal sampling front-end module.
• Features: Two selectable differential input channels On-chip active low noise PGA with selectable gain of 32, 64 and 128 On-chip power supply regulator for load-cell and ADC analog power supply On-chip oscillator requiring no external component with optional external crystal On-chip power-on-reset
• Simple digital control and serial interface: pin-driven controls. no programming needed Selectable 10SPS or 80SPS output data rate Simultaneous 50 and 60Hz supply rejection Current consumption including on-chip analog power supply regulator: normal operation less 1.5mA. power down less 1uA Operation supply voltage range: 2.6 ~ 5.5V
• Saturation automatically adjust (UV adjustment ) Automatically adjust edge enhancement Noise Reduction automatically adjust
