Heavy Duty Compact OEM Pressure Transmitter Model 3100 Series
img_17352909
Heavy Duty Compact OEM Pressure Transmitter Model 3100 Series

Heavy Duty Compact OEM Pressure Transmitter Model 3100 Series

Rs. 13,099.00
Rs. 21,299.00
Rs. 13,099.00
(-38%)

ⓘ Price & availability are subject to final order validation. If an adjustment is required due to size, weight or shipping requirements, we'll contact you before processing your order.

10 customers are viewing this product
Subtotal: Rs. 13,099.00
Overseas

Ships from our international warehouse ! This item ships from our international warehouse to bring you a wider range of products. Delivery may take a little longer, but all duties and taxes are included — there are no additional charges on delivery.


Estimated to be delivered between 24/10/2026 - 04/11/2026

📦 Tracked shipping
🔒 Secure checkout
✔ Buyer protection
✔ No import duties or extra fees

Free Shipping

Free standard shipping on prepaid orders

img_17352909

Heavy Duty Compact OEM Pressure Transmitter Model 3100 Series

Rs. 21,299.00 Rs. 13,099.00
img_17352909

Heavy Duty Compact OEM Pressure Transmitter Model 3100 Series

Rs. 21,299.00 Rs. 13,099.00
Description

Description:

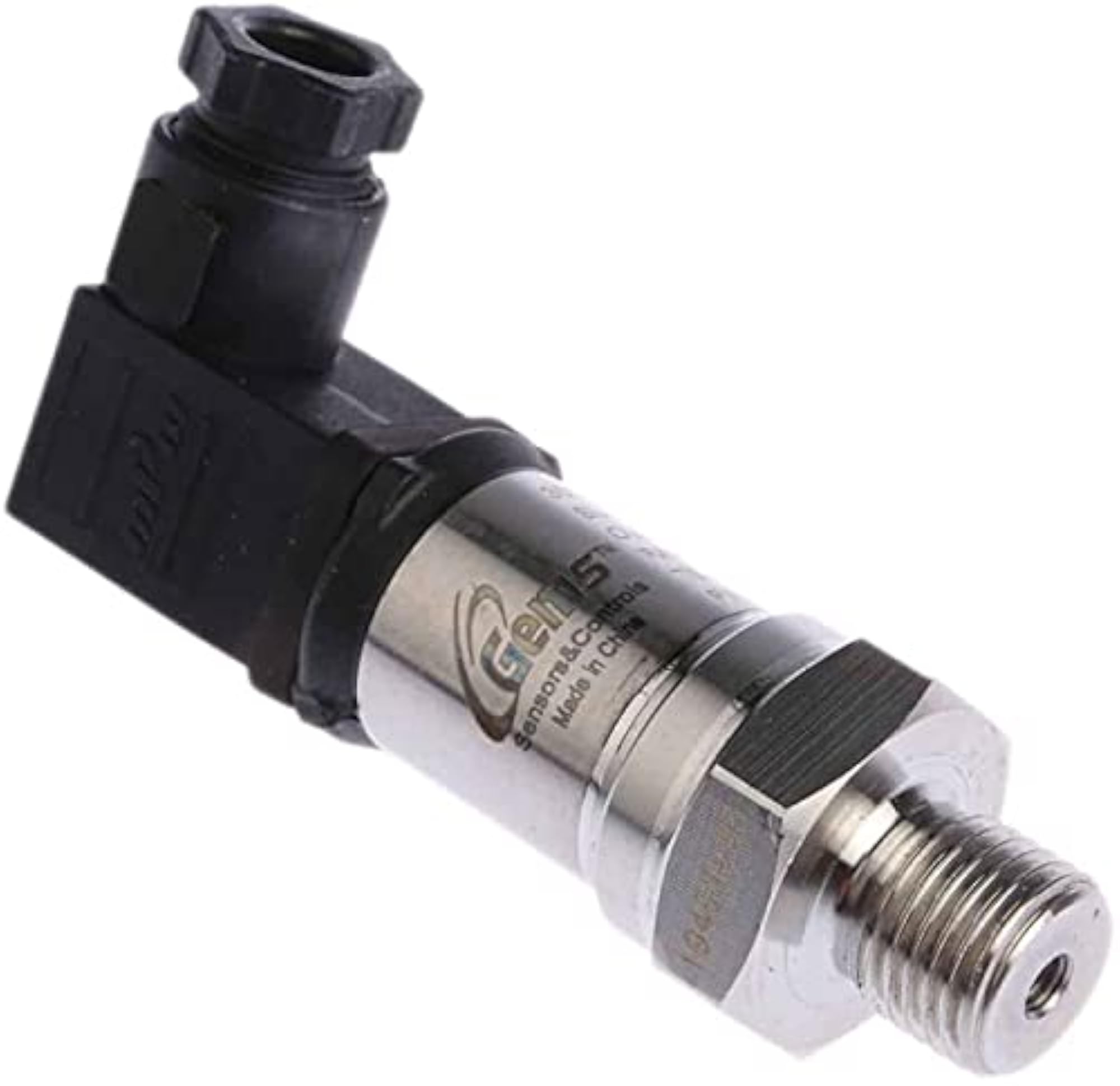

Monitor pressure levels effectively with this heavy-duty compact OEM pressure transmitter, designed for a range of applications with a pressure range of 0 to 16 Bar. The Model 3100 Series offers reliable performance and durability, making it suitable for industrial and HVAC systems. A dependable choice for pressure monitoring needs.

Features:

  • Compact design allows for easy installation in various applications and environments.
  • Pressure range of 0 to 16 Bar ensures versatility for different monitoring needs.
  • Heavy-duty construction provides durability and long-lasting performance.
  • Ideal for industrial and HVAC systems requiring accurate pressure readings.
  • A reliable choice for professionals in need of dependable pressure monitoring solutions.

Additional Info:

  • Range: 0 to 16bar; Accuracy: 0.25% FS; Thermal Error: 0.83% FS/100?F (1.5% FS/100?C).
  • Performance: Long Term Drift: 0.2% FS/YR (non-cumulative); Operating Temperatures -40?F to +257?F / (-40?C to +125?C) for elec. codes B, C, E, G, 6, 8, 9, Y -5?F to +180?F (-20?C to +80?C) for elec. codes F, 3, W; Storage Temperatures: -40?F to +257?F / (-40?C to +125?C); Zero Tolerance: 0.5% of span; Span Tolerance: 0.5% of span; Response Time:1 ms; Fatigue Life: Designed for more than 100 M cycles.
  • Voltage: Output (3-wire) 0 V min. to 10 V max; Supply Voltage 2 Volts above full scale to 30 VDC max @ 4.5 mA (6.5 mA on dual output version); Source and Sinks: 2 mA.
  • Current: Output (2-wire): 4-20 mA; Supply Voltage: 8 to 30V DC; Maximum Loop Resistance: (Supply Voltage-8) x 50 ohms; Ratiometric: Output 0.5 to 4.5 VDC @ 4 mA (6.5 mA on dual output version); Supply Voltage 5 VDC ?10%.
  • Mechanical Configuration: Wetted Parts: 17-4 PH Stainless Steel; Housing: 304 Stainless Steel; Enclosure: IP67 (IP65 for electrical codes G & W); Vibration: 40G peak to peak sinusoidal,(Random Vibration: 20 to 1000 Hz @ approx. 40G peak per MIL-STD-810E); Shock: Withstands free fall to IEC 68-2-32 procedure 1; EMC (Radiated Immunity) 100 V/m.
