Fineness Gauge Grindometer Fineness of Grind ISO Standard

Description:

This fineness gauge grindometer is designed to measure the fineness of grind according to ISO standards, featuring one channel and a range of 0-25/50/100/150um. Its precise design ensures accurate measurements, making it an essential tool for quality control in paint, ink, and coating industries.

Features:

• Precision grindometer measures fineness of grind according to ISO standards.
• One channel design allows for easy and accurate measurements.
• Ideal for quality control in paint, ink, and coating industries.
• Compact and portable design for easy storage and transport.
• A valuable tool for quality control professionals and manufacturers.

Additional Info:

• size : 0-50um

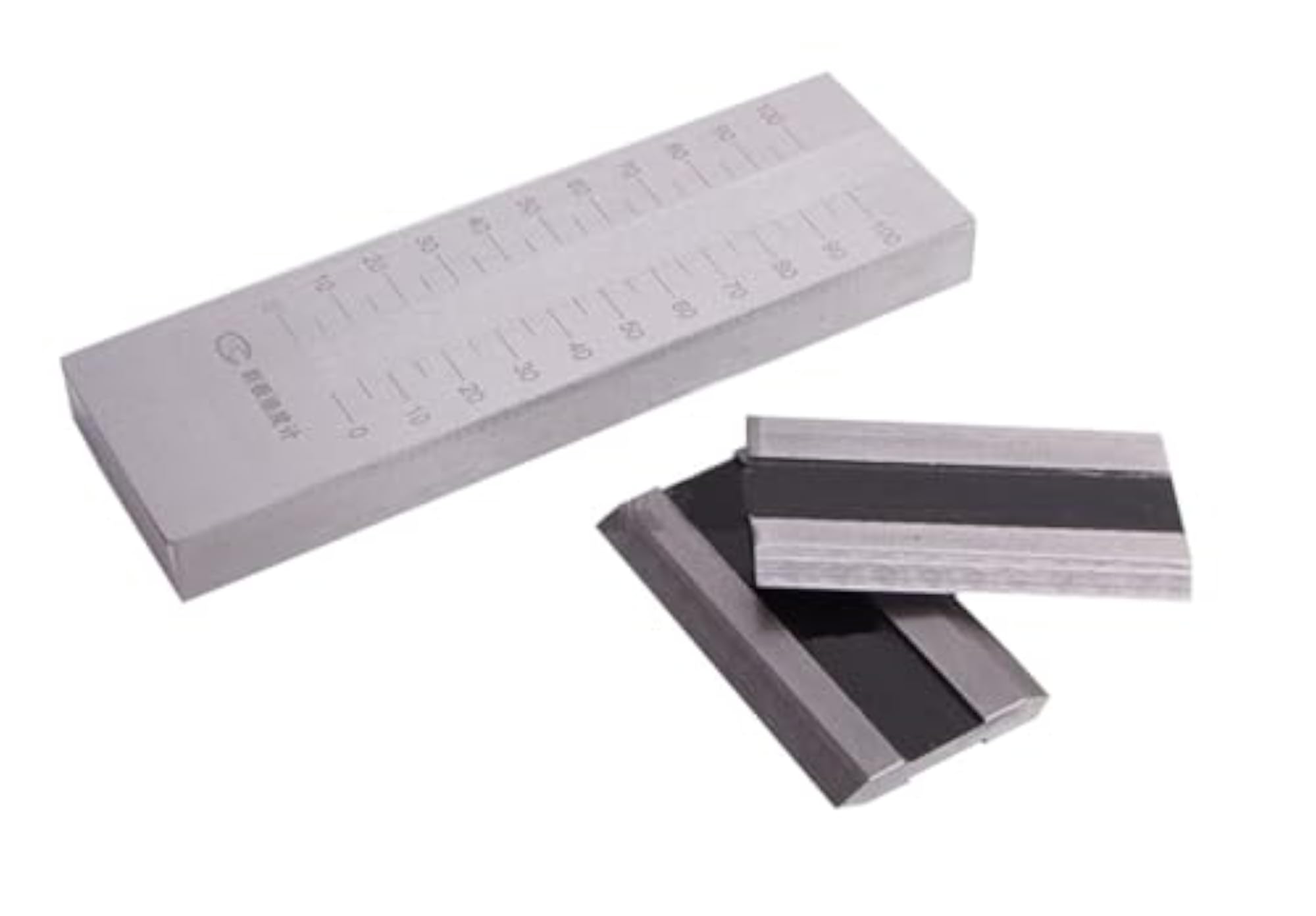

• [0-50?m, INDEX VALUE 2.5?m] We have four kinds of single groove grindometer: 0-25?m, 0-50?m ( index value is 2.5?m) 0-100?m, 0-150?m ( index value is 5?m). Single Fineness gauge, with a spatula, stainless steel by forging (4Cr13) is made with a certain slope of the groove. Scale in microns (?m), the accuracy of fineness plate grooves ? 1?m.Made by CNC precision machining.
• [USING AND READING] Put some particles on the deeper groove, then use scraper to scrape them from deeper to low groove. Immediately (not over 5 seconds) observe the tick mark of visible grains in the channel, this numerical value is the fineness.
• [READING UNIT: ?m] Correspondence between micron and hegman as follows: 0 hegman=100 um ;4 hegman=50 um ;8 hegman=0 um.
• [HOW TO CHOOSE GRINDOMETER] Choose a fineness gauge 5-10um higher than the product fineness range you measured.
• [NOT ONLY FOR PAINT] Fineness gauge can measure not only the fineness of paint, but also the fineness of coatings, pigments, raw materials, plastics, printing ink and so on. In chocolate, ceramics, paper, medicine, food and other industries, it is also possible to use single groove grinding fineness design for fineness detection.
