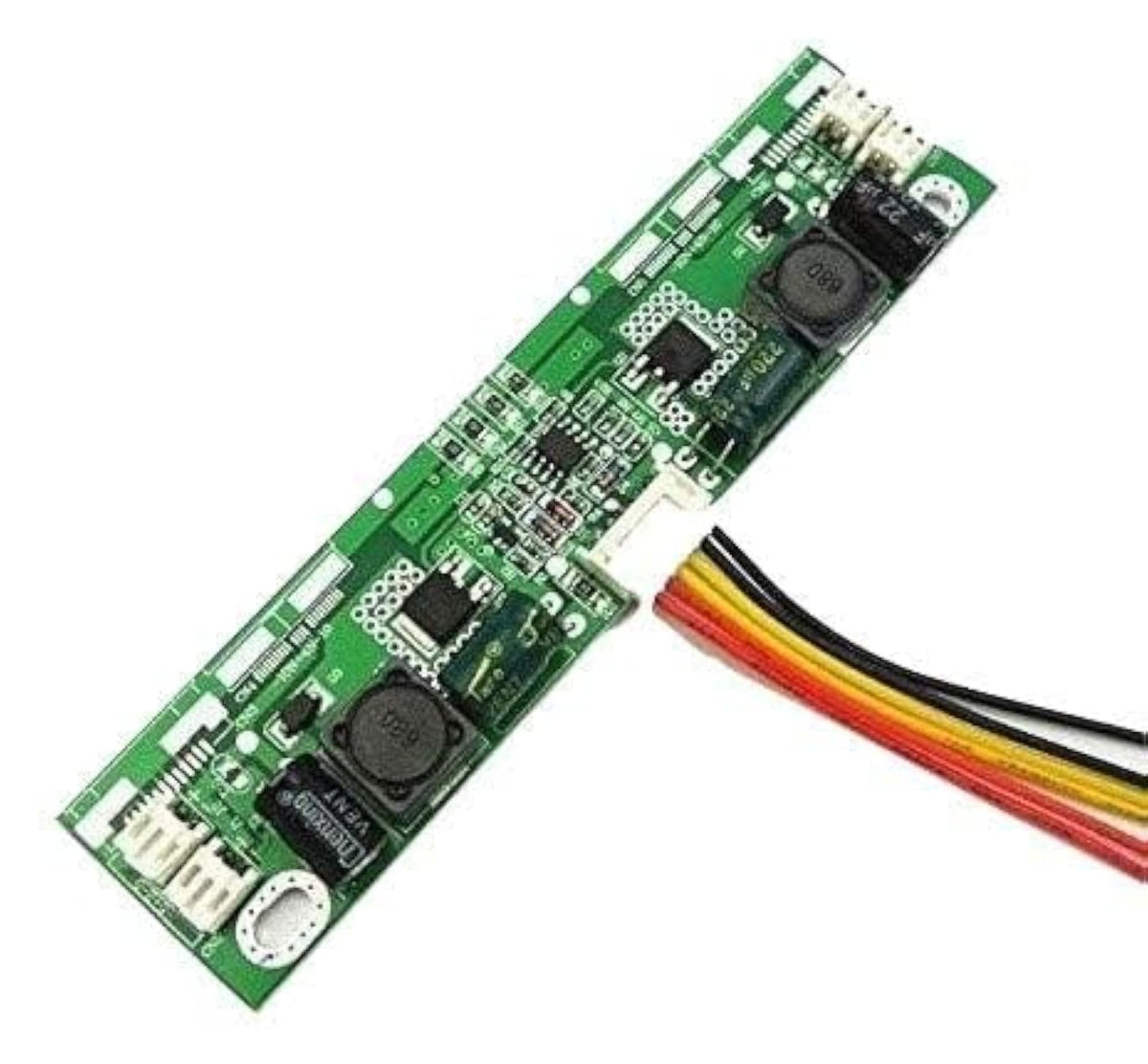

CA-266 LED TV Backlight Driver Board

Rs. 999.00
Rs. 1,799.00
Rs. 999.00
(-44%)

ⓘ Price & availability are subject to final order validation. If an adjustment is required due to size, weight or shipping requirements, we'll contact you before processing your order.

10 customers are viewing this product
Subtotal: Rs. 999.00
Overseas

Ships from our international warehouse ! This item ships from our international warehouse to bring you a wider range of products. Delivery may take a little longer, but all duties and taxes are included — there are no additional charges on delivery.


Estimated to be delivered between 06/10/2026 - 17/10/2026

📦 Tracked shipping
🔒 Secure checkout
✔ Buyer protection
✔ No import duties or extra fees

Free Shipping

Free standard shipping on prepaid orders

img_12024402

CA-266 LED TV Backlight Driver Board

Rs. 1,799.00 Rs. 999.00
img_12024402
img_12024403
img_12024404
img_12024405

CA-266 LED TV Backlight Driver Board

Rs. 1,799.00 Rs. 999.00
Description

Description:

Enhance your viewing experience with the CA-266 LED TV backlight driver board, designed for optimal performance and compatibility with various LED TVs. This driver board ensures consistent backlighting, improving picture quality and reducing eye strain during long viewing sessions. A must-have for upgrading your home entertainment system.

Features:

  • CA-266 LED TV backlight driver board for improved picture quality.
  • Ensures consistent backlighting for a better viewing experience.
  • Compatible with various LED TVs for versatile use.
  • Reduces eye strain during prolonged viewing sessions with optimal performance.
  • An essential upgrade for enhancing your home entertainment system.

Additional Info:

  • power_source_type : DC
  • Power Supply Input Specifications: Supports 10-28V DC input voltage range for versatile compatibility with various power sources and applications

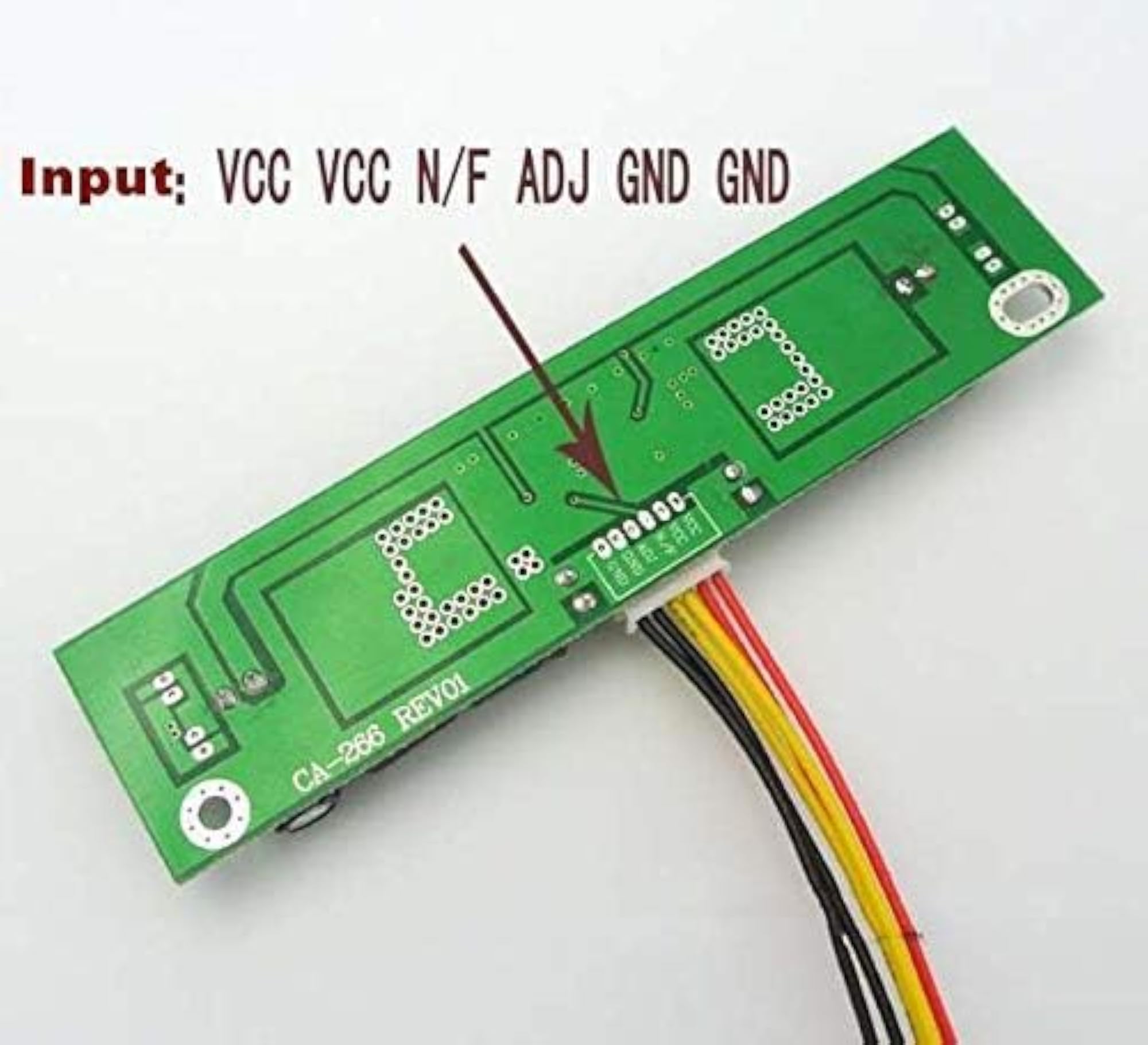

  • Interface Definition and Wiring Configuration: Power connections on pins 1-2, Ground on pins 5-6, Brightness Control on pin 4, Switching signal on pin 3, with color-coded wires where red indicates input line, yellow for switch and brightness adjustment, and black for ground
  • Technical Knowledge Required: This product requires prior technical understanding of LED backlight driver boards and their installation before purchasing and use
  • Output Specifications and Current Adjustment: Automatic voltage adaptation up to 88V output with default 80mA current that can be increased by shorting resistors R22, R21, R18, R15, and R24, with each resistor adding 80mA for a maximum of 480mA output current
  • Safety Precaution During Testing: Avoid touching the ADJ pin during testing and operation to prevent damage to the board or connected components
  • Compatible Screen Size Range: Designed for LED TV backlights ranging from 26 inches to 65 inches with maximum voltage capacity of 88V
  • Protection Features and No-Load Safety: Includes built-in protection circuitry and no-load safety feature that automatically reduces output voltage to input voltage level when no load is connected or when load voltage exceeds 88V
