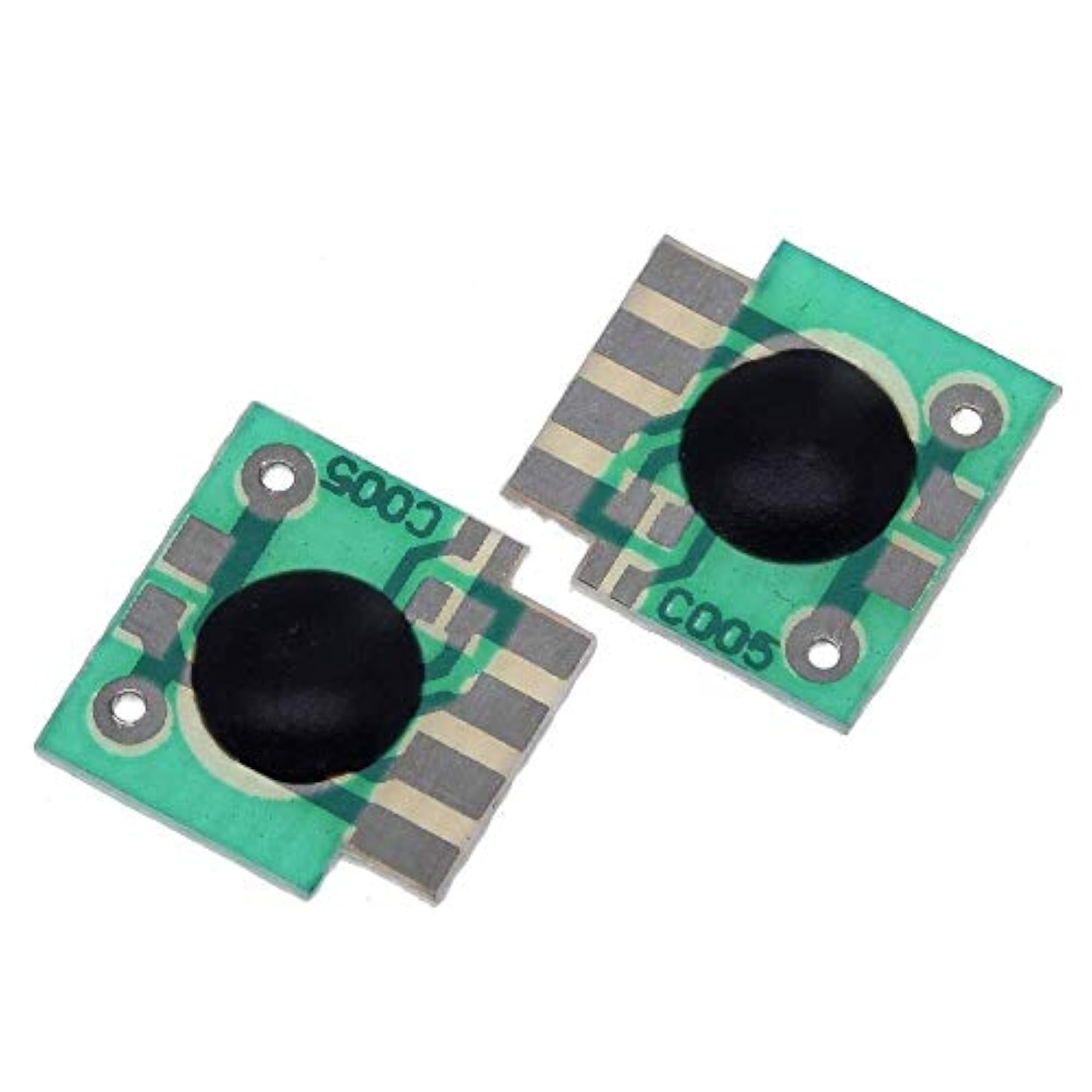

C005 Multifunction Delay Trigger Timing Chip Module, 2/3/4 Pieces

Description:

Control your electronic devices with precision using this C005 multifunction delay trigger timing chip module, available in packs of 2, 3, or 4 pieces. Ideal for various projects, this module allows for timing adjustments from 2 seconds to 1000 hours. A valuable tool for electronics enthusiasts and hobbyists.

Features:

• C005 multifunction delay trigger timing chip module available in packs of 2, 3, or 4.
• Allows for timing adjustments from 2 seconds to 1000 hours for versatile applications.
• Ideal for various electronic projects requiring precise timing control.
• Compact design makes it easy to integrate into different setups.
• A must-have for hobbyists and professionals needing reliable timing solutions.

Additional Info:

• color : BULTI, material : GLASS EPOXY
• Shape about 12mm * 12mm, operating voltage 2v-5v, timing can be set to a minimum to a maximum of 2 seconds 1,000 hours, as indicated below description
• Function and Design 1. The circuit according to claim connected and set a good time resistance and supply voltage; 2. Before the power not trigger output is high; 3. Trigger terminal "falling" trigger effective immediately after the trigger output terminal goes low at the same time start the timer circuit; 4. Set the timer time to recover after the output terminal is high, wait for the next "falling" trigger;
• The chip is not repeated triggered, meaning that continue to trigger in the period after the trigger chip output low if the trigger is invalid; 6. The trigger end of "falling" Trigger refers to the instantaneous change from high level to a low level; 7. General refers to VCC high voltage, low means 0-0.3v or GND, provided that they meet the level requirements can be;
• 8. trigger terminal can be connected to touch switch or microcontroller IO port or other digital circuits have a "falling" can effectively trigger; 9. The trigger can be designed to power, only to trigger a short circuit to ground, power is triggered, the time to recover after the output to a high level, waiting for the next Falling edge trigger again.
• Chip Features: 1. The use of low-power CMOS technology, lead-free and environmentally friendly. 2. Direct Push can output low LED (please add current limiting resistor), the output high may push transistor (please add current limiting resistor).
