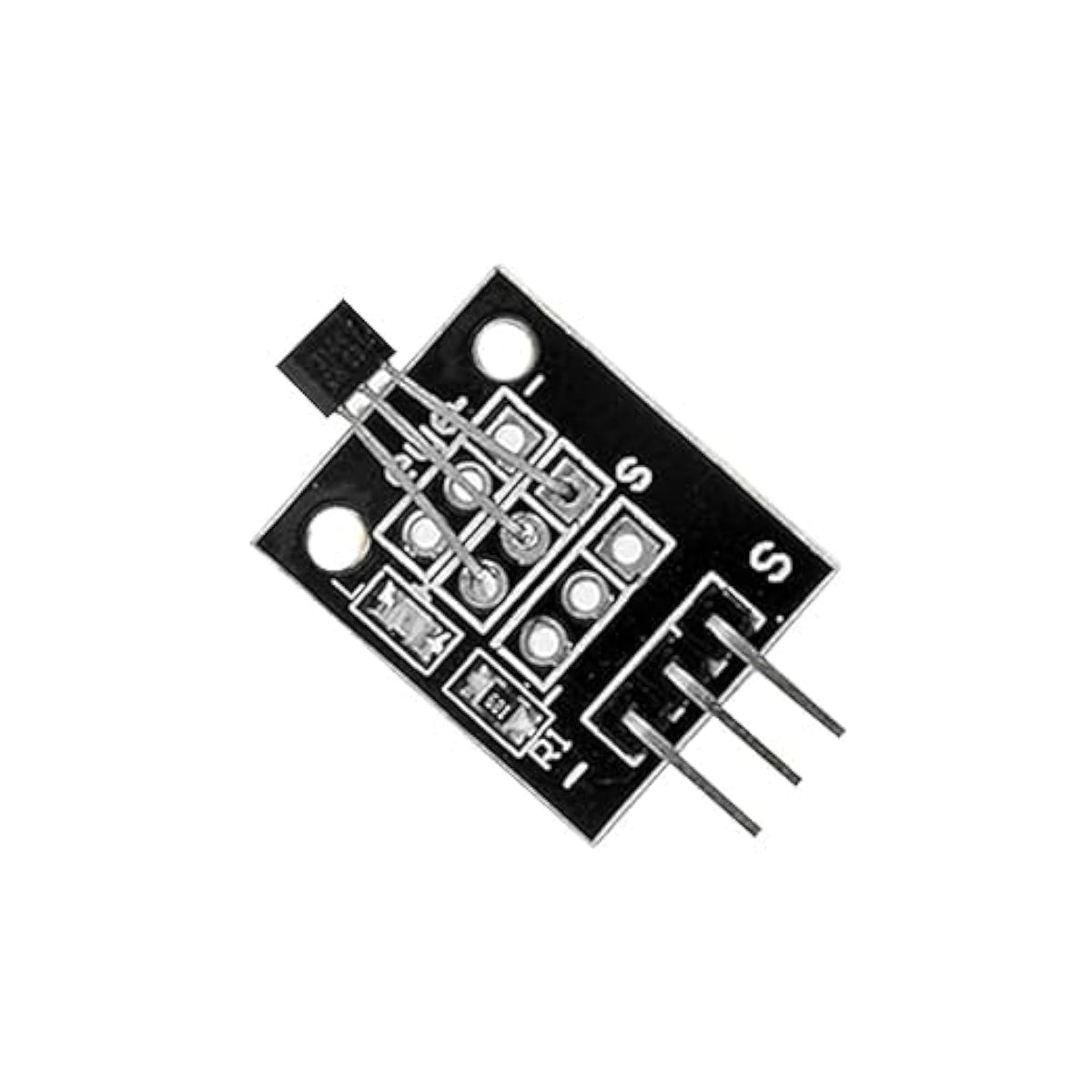

A3144 Hall Effect Detection Sensor Module

Description:

Detect magnetic fields with the A3144 Hall effect detection sensor module. This compact sensor is ideal for various electronics projects, providing reliable performance in detecting magnetic presence.

Features:

• Compact design for easy integration into your DIY electronics projects.
• Detects magnetic fields with high sensitivity and reliability.
• Ideal for robotics, security systems, and other applications requiring magnetic detection.
• Compatible with Arduino and other microcontrollers for versatile use.
• A valuable component for hobbyists and engineers working on magnetic sensing applications.

Additional Info:

• ? Working Principle When a magnetic field (south pole) is brought near the sensor, the output goes LOW. When the magnetic field is removed, the output returns HIGH. The module includes a pull-up resistor and indicator LED, allowing easy interfacing with microcontrollers.
• Key Features Based on A3144 unipolar Hall effect sensor IC Digital output (HIGH / LOW) On-board power LED and output indicator LED Stable and fast response Compact and lightweight PCB design
• . Technical Specifications Sensor IC: A3144 Hall Effect Sensor Operating Voltage: 4.5V ? 24V DC Output Type: Digital (Open Collector) Output Logic: No magnetic field ? HIGH Magnetic field detected ? LOW Response Time: < 2 ?s Operating Temperature: ?40?C to +85?C Pin Configuration: VCC GND OUT
