8CH PPM Encoder & Pixhawk I2C Splitter Expand Module

Description:

This 8CH PPM encoder and Pixhawk I2C splitter expand module is designed for enhancing the capabilities of your Pixhawk flight controller. It allows for multiple connections, making it ideal for advanced drone and robotics applications.

Features:

• Enhances capabilities of Pixhawk flight controller with multiple connections.
• 8CH PPM encoder for versatile signal processing in drones.
• Compatible with various flight control systems for flexibility.
• Compact design for easy integration into existing setups.
• A valuable tool for advanced drone and robotics enthusiasts.

Additional Info:

• size : Small, color : multi
• The design of the PPM Encoder is based on the Paperazzi PPM Encoder.
• The whole project is based around the ATMEL ATMEGA328p AVR processor and all timing is done within interrupts so accuracy and stability is optimized.

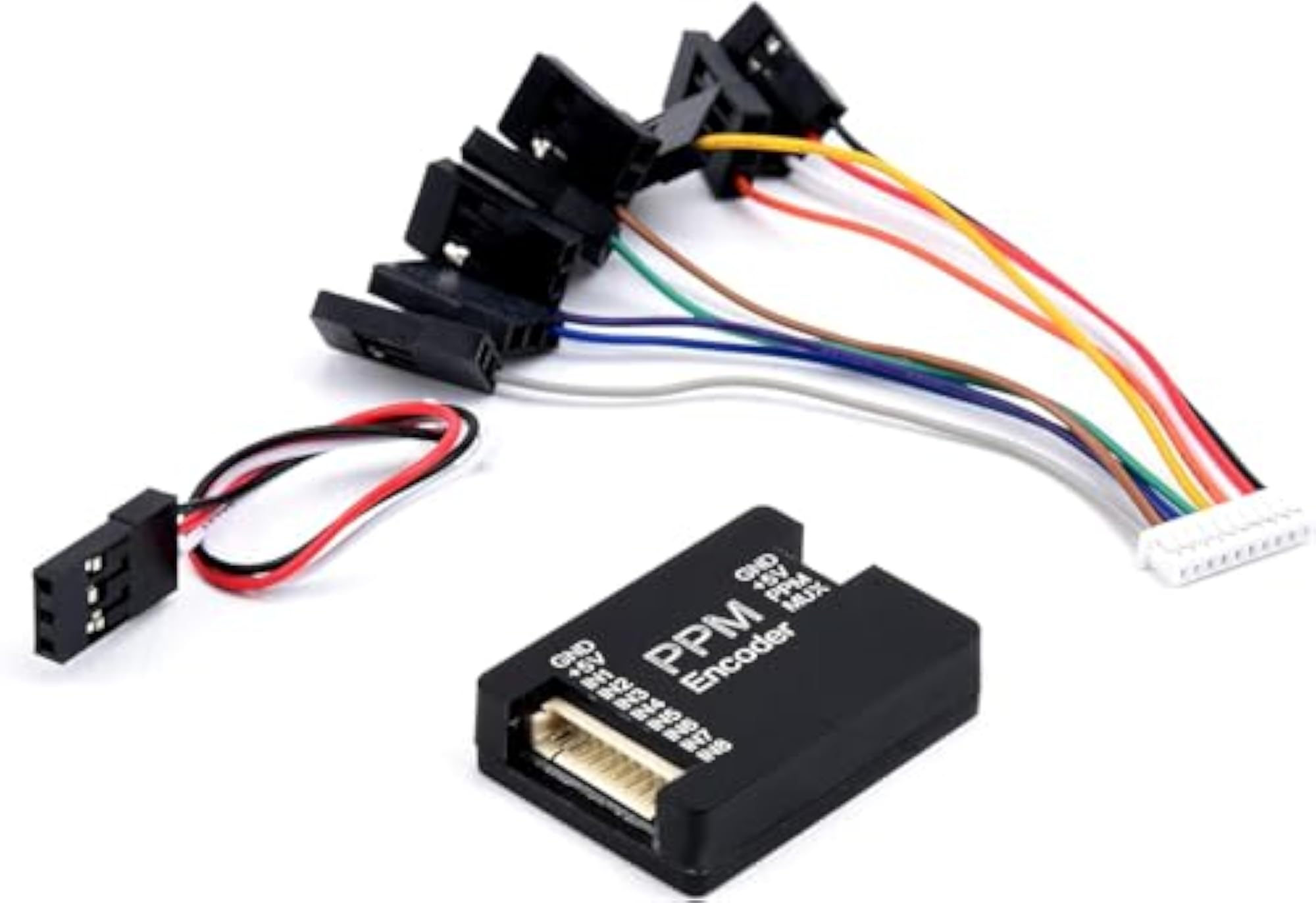

• The PPM Encoder plugs into the PWM servo output ports of any R/C receiver and encodes them into a PPM pulse suitable for many autopilots (e.g. Pixhawk). Modifications to the R/C receiver are not necessary.

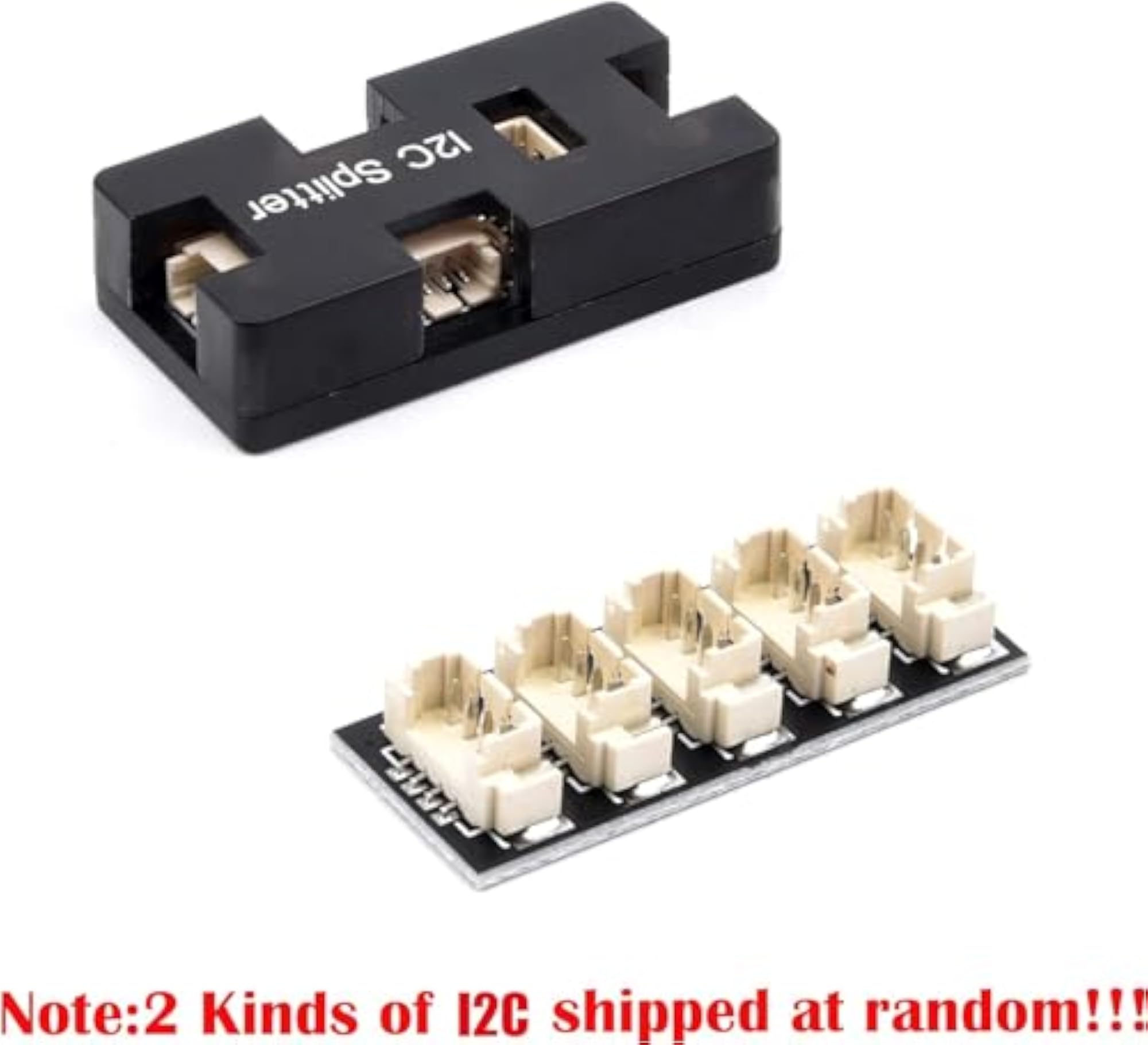

• Expands the i2c port to allow up to four additional peripherals to connect to pixhawk. Use the 4-wire cable to connect the i2c splitter and add a compass module, external led, digital airspeed sensor, or other peripherals to your vehicle.
• Important Note:The firmware comes pre-configured to read 8 Channels. In case you would like to change the settings of the PPM encoder to invert the PPM signal and change the fail safe pre-defined values you will need an AVR ISP programmer in order to reprogram it.
